Important: Product images may not represent the actual item and may include generic, demonstrative, or compatibility examples. Please carefully review the product title, description, and specifications to understand what is included in your purchase.

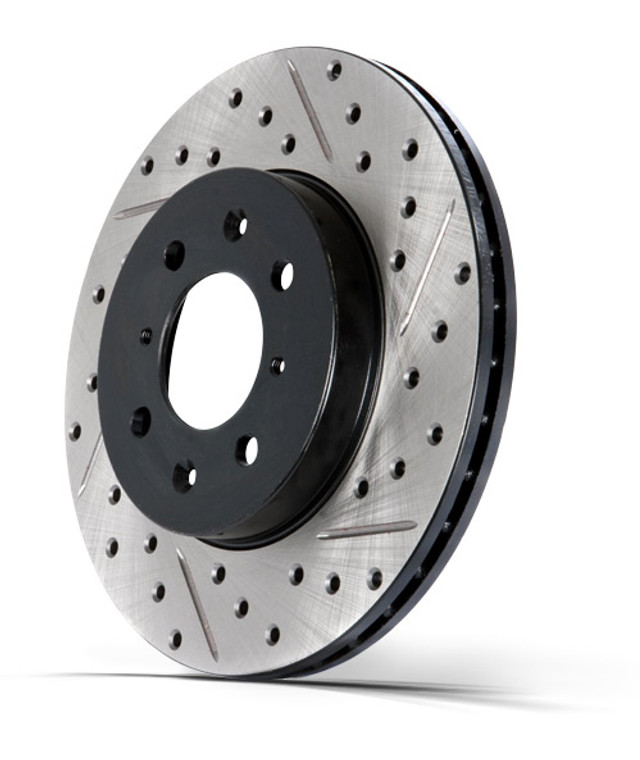

Note: Brake Rotor, SportStop ® Drilled And Slotted, One Piece Design, Wheel Bolt Pattern 5 x 120 Millimeter, 356 Millimeter Outside Diameter x 62.3 Millimeter Height x 36 Millimeter Nominal Thickness, 75 Millimeter Hub Inside Diameter, Electro-Coated Cast Iron, Single
Key Features
- Premium Quality, Larger Diameter PowerSlot Rotor With Vac-U-Slot Technology
- Exclusive Vac-U-Slots Are Machined Into The Rotor And Help Evacuate Gasses And Dust, Shed Heat, Also Keep The Brake Pad Surface Clean In Wet And Raining Conditions
- Vac-U-Slot Helps Push Water Off The Braking Surface For Better Stopping Power
- Relocates The Factory Brake Caliper For Increased Braking Effectiveness. Rotors Are Cadmium Plated To Military Specifications To Protect Against Rust
- No Special Brake Pad Sizes Required
- Maintains 96 Percent Active Breaking Area. 100 Percent Bolt-On Mounting, No Cutting Or Drilling
- Complete Hardware Kit And Comprehensive Installation Instructions Included
- Limited 3 Year Warranty
Technical Details
- Disc Type: Drilled And Slotted
- Finish: Electro Coated
- Quantity: Single
- Recommended Use: Performance
- Design: 1-Piece
- Material: Cast Iron
- Hub Bore Size: 75 Millimeter
- Wheel Bolt Circle IN: 5 X 4.724 Inch
- Wheel Bolt Circle MM: 5 X 120 Millimeter
- Disc To Hat Bolt Circle IN: Not Applicable
- Disc To Hat Bolt Circle MM: Not Applicable
- Outer Diameter IN: 14.016 Inch
- Outer Diameter MM: 356 Millimeter
- Height IN: 2.453 Inch
- Height MM: 62.3 Millimeter
- Nominal Thickness IN: 1.417 Inch
- Nominal Thickness MM: 36 Millimeter
